63-79 SMART STRUT - STRUT ROD (ND)

Part Number : 582237

SEE DESCRIPTION BEFORE PLACING ORDER.

Key Information

1 Left In Stock

£387.78 exc. VAT

inc.VAT

Quantity

Add To Cart

    Years

    Specifications

    Further Information

    Smart Struts are probably the single best improvement there is for C2 and C3 Corvettes. They improve handling, reduce uneven tyre wear, hub bearing wear and side loading. They virtually eliminate rear wheel camber changes. This greatly improves the tyre/road contact patch - keeping rear tyres perpendicular to the road surface at all times.

    On the Corvettes rear suspension the driveshaft forms the upper wishbone and the strut rod forms the lower wishbone, in stock form the two are at very different angles resulting in considerable camber change when cornering. The Corvette’s rear camber setting changes over 2 degrees at 2.5” of wheel travel.

    With Smart Struts, the custom mounting bracket puts the strut rod at a more parallel angle to the driveshaft, thereby creating a more effective independent rear suspension setup, and as a result camber change is less than 1/10 of a degree at 5” of wheel travel. This has the effect of stiffening the rear suspension considerably.

    They are also about the only successful way to tame very bouncy composite monosprings.

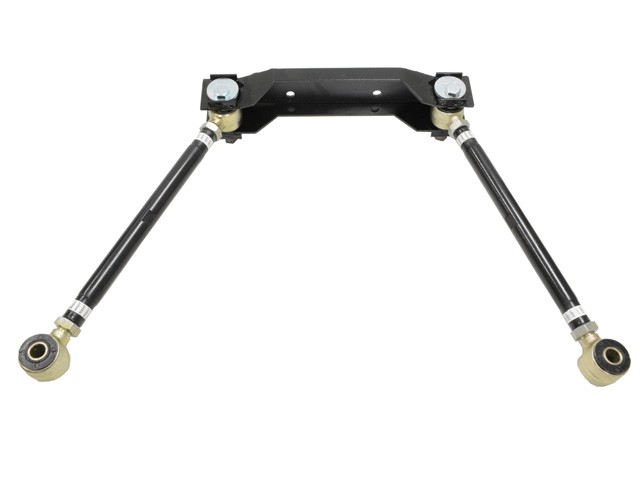

    Kit includes:

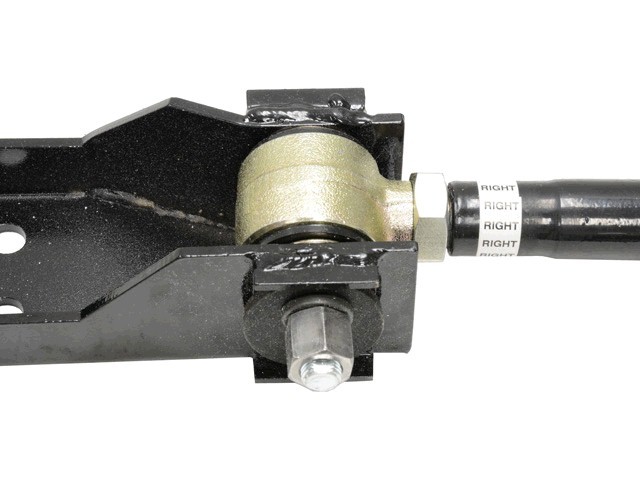

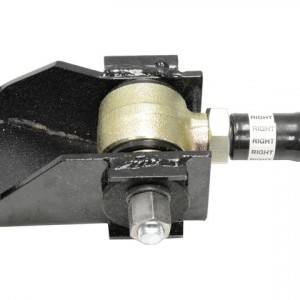

    Custom mounting bracket

    Camber adjustment cams

    Heavy Duty strut rods with swedged ends for added strength

    Forged rod ends (not welded)

    Polyurethane bushings with graphite


    Please note: These will NOT clear a stock 63-67 undercar exhaust system.
